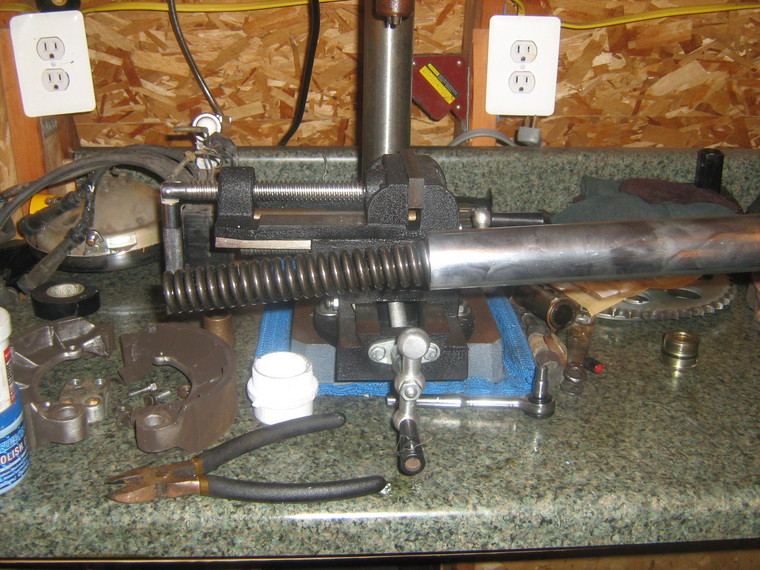

Now that the mod is done time to reassemble. Slide the spring into the tube.

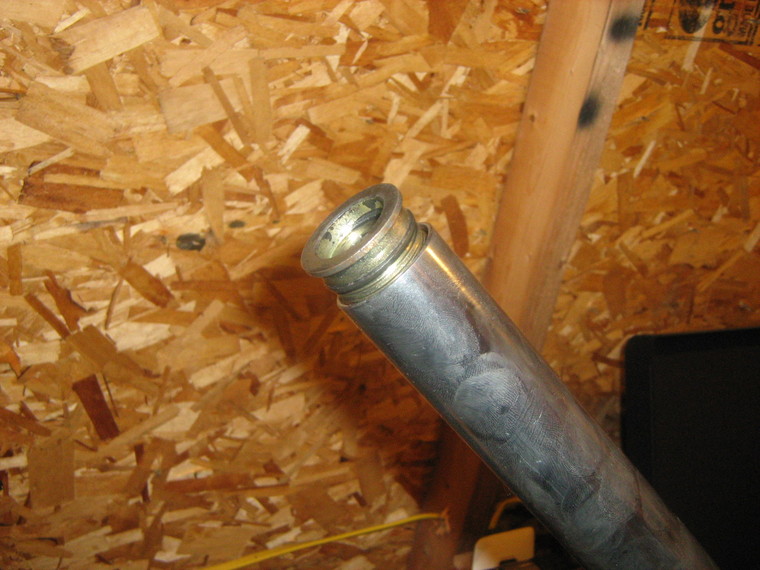

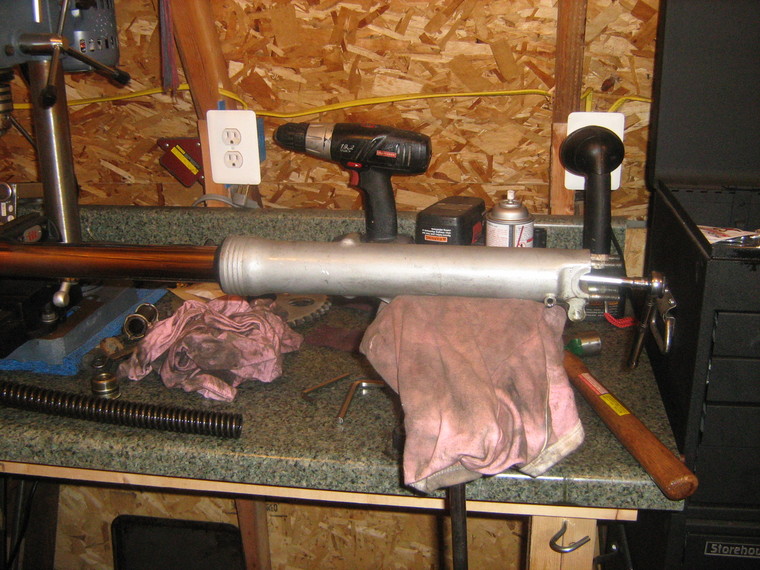

Install tube in the lower and reinstall the lower with the allen screw.

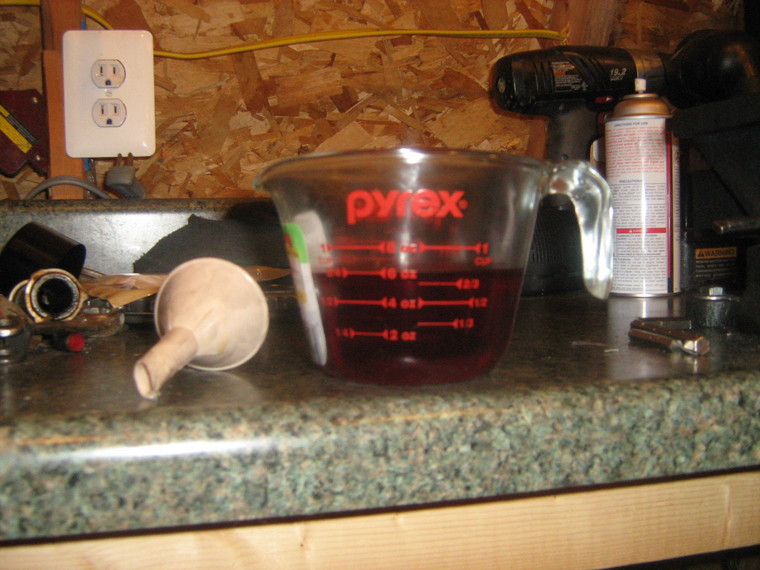

Measure the fluid of choice (atf/ fork oil/ 10w30). I used atf. 6 oz and pour in the top of fork.

Reinstall top cap
Note: These old springs i cut at 1 3/4 inches for some preload.
